TGA 103A ThermoGravimetric Analyzer
Working principle
Thermogravimetric analysis (TG, TGA) is a method of observing the changes in the mass of a sample with temperature or time during heating, constant temperature, or cooling processes, with the aim of studying the thermal stability and composition of materials.
The DZ-TGA103A thermogravimetric analyzer is widely used in research and development, process optimization, and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials, and composite materials.
Structural advantages
1. The furnace body heating adopts a double row winding of precious metal platinum rhodium alloy wire, reducing interference and making it more resistant to high temperatures.
2. The tray sensor is made of precious metal alloy wire and is finely crafted, with advantages such as high temperature resistance, oxidation resistance, and corrosion resistance.
3. Separate the power supply, circulating heat dissipation part from the main unit to reduce the impact of heat and vibration on the microcalorimeter.
4. The host adopts an isolated heating furnace to mitigate the thermal impact on the chassis and micro thermal balance.
5. The furnace body adopts double insulation for better linearity; The furnace body is equipped with automatic lifting, which can quickly cool down; With exhaust outlet, it can be used in conjunction with infrared and other technologies.
Controller and software advantages
1. Adopting imported ARM processors for faster sampling and processing speed.
2. Four channel sampling AD is used to collect TG signals and temperature T signals.
3. Heating control, using PID algorithm for precise control. Can be heated in multiple stages and kept at a constant temperature
4. The software and instrument use USB bidirectional communication, fully realizing remote operation. The instrument parameters can be set and the operation can be stopped through computer software.
5. 7-inch full-color 24 bit touch screen for a better human-machine interface. TG calibration can be achieved on the touch screen.
Technical parameters
1. Temperature range: Room temperature~1250 ℃
2. Temperature resolution: 0.01 ℃
3. Temperature fluctuation: ± 0.1 ℃
4. Heating rate: 0.1~100 ℃/min; Cooling rate 0.1~40 ℃/min
5. Temperature control method: PID control, heating, constant temperature, cooling
6. Program control: The program sets multiple stages of temperature rise and constant temperature, and can simultaneously set five or more stages
7. Balance measurement range: 0.01mg~3g, expandable to 50g
8. Accuracy: 0.01mg
9. Constant temperature time: arbitrarily set; Standard configuration ≤ 600min
10. Resolution: 0.1ug
11. Display mode: 7-inch Chinese character large screen LCD display
12. Atmosphere device: Built in two-way gas flow meters, including two-way gas switching and flow rate control
13. Software: Intelligent software can automatically record TG curves for data processing, and TG/DTG, quality, and percentage coordinates can be switched freely; The software comes with automatic adjustment function, which automatically extends and scales according to the graph display
14. The gas path can be set to automatically switch between multiple sections without the need for manual adjustment.
15. Data interface: standard USB interface, dedicated software (software is periodically upgraded for free)
16. Power supply: AC220V 50Hz
17. Curve scanning: heating scan, constant temperature scan, cooling scan
18. Five test charts can be opened simultaneously for comparative analysis
19. Operating software with corresponding copyright certificates, data testing frequency can be selected from real-time, 2S, 5S, 10S, etc
20. Crucible types: ceramic crucible, aluminum crucible
21. The furnace body has two modes of automatic and manual lifting, which can quickly cool down; ≤ 15 minutes, drop from 1000 ℃ to 50 ℃
22. External water cooling device to isolate the drift effect of heat on the weighing system; Temperature range -10~60 ℃
Compliant with industry standards
Plastic polymer thermogravimetric method: GB/T 33047.3-2021
Educational Heat Analysis Method: JY/T 0589.5-2020
Determination of rubber content in chloroprene rubber composite rubber: SN/T 5269-2019
Thermogravimetric analysis method for agricultural biomass raw materials: NY/T 3497-2019
Determination of Ash Content in Rubber: GB/T 4498.2-2017
Thermogravimetric characterization of single-walled carbon nanotubes using nanotechnology: GB/T 32868-2016
Test method for vinyl acetate content in ethylene vinyl acetate copolymers for photovoltaic modules - Thermogravimetric analysis method: GB/T 31984-2015
Rapid thermal aging test method for electrical insulation impregnating paint and paint cloth: JB/T 1544-2015
Rubber and rubber products - Determination of composition of vulcanized and uncured rubber - Thermogravimetric analysis method: GB/T 14837.2-2014
Thermogravimetric analysis method for oxidation temperature and ash content of carbon nanotubes: GB/T 29189-2012
Determination of starch content in starch based plastics: QB/T 2957-2008
(Display of some industry standards)
Partial test chart:

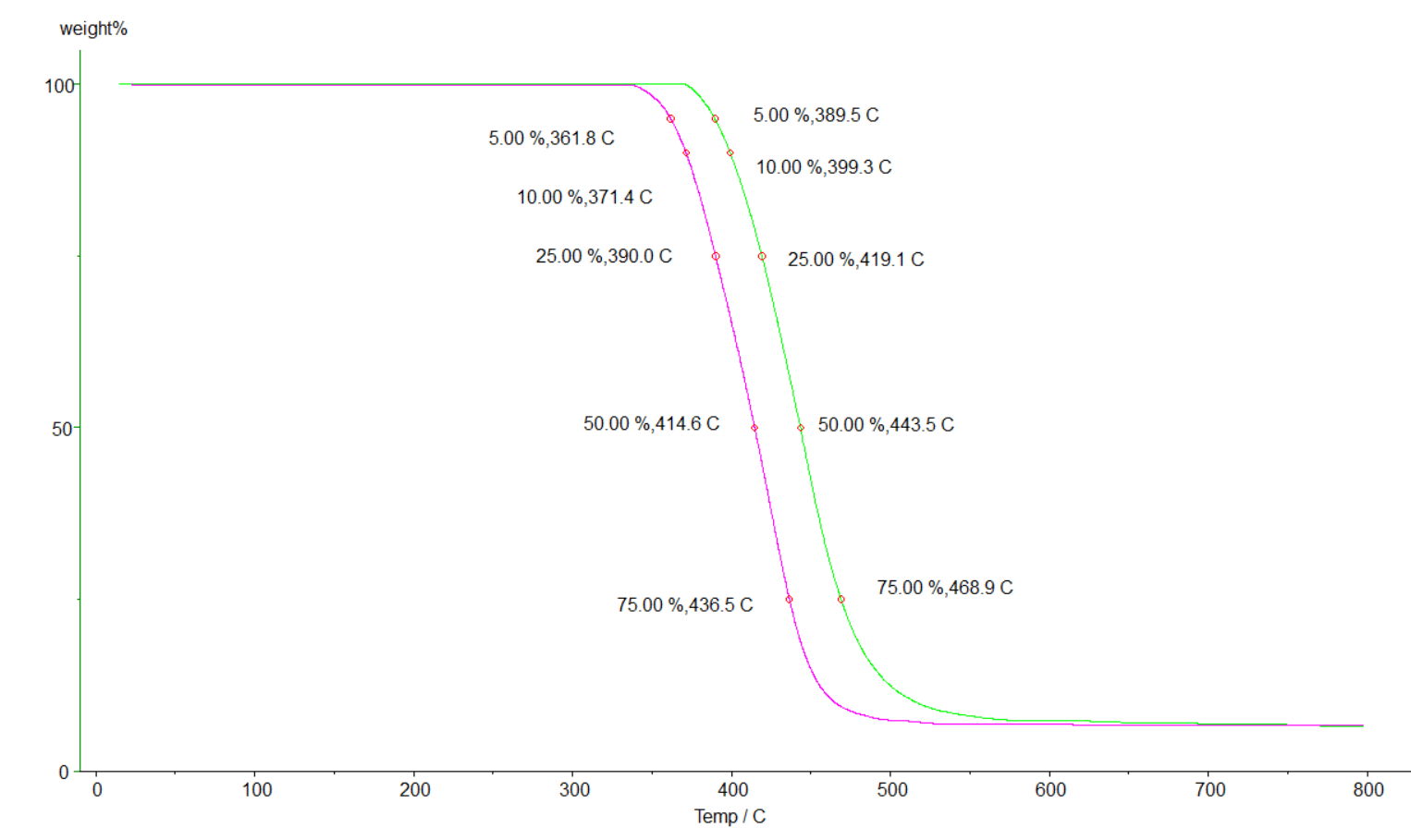

1. Comparison of stability between polymer A and B, with polymer B having a higher overall weight loss temperature point than material A; Better stability

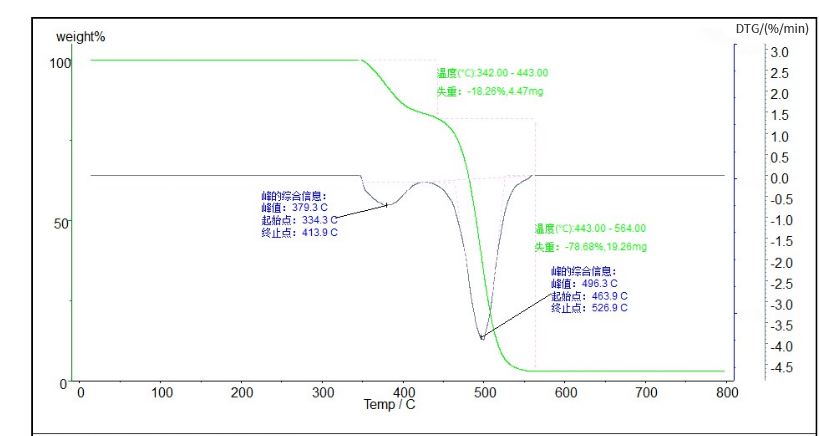

2. Analysis of Sample Weight Loss and Weight Loss Rate DTG Application

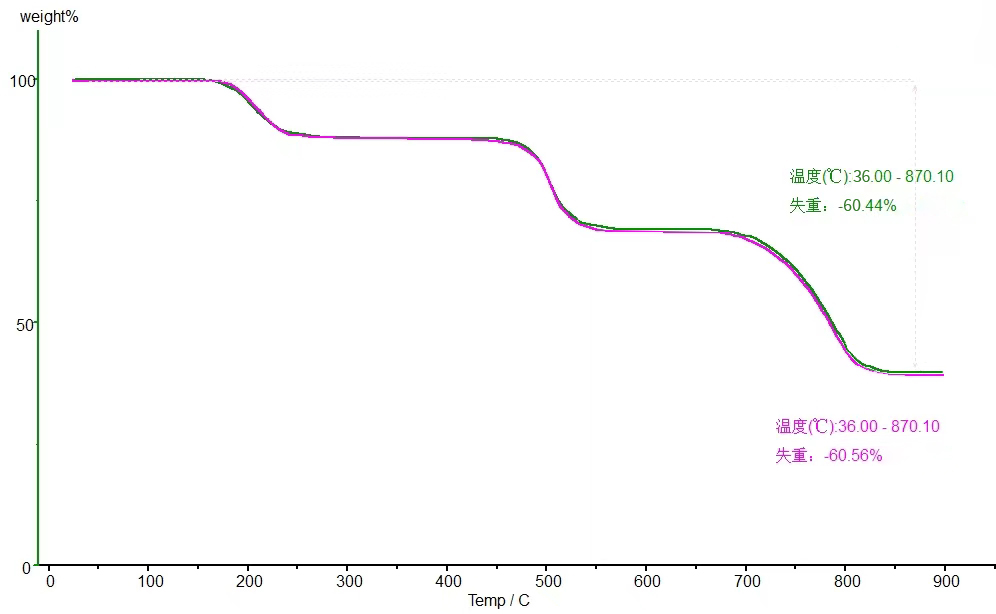

3. Repetitive testing comparative analysis, two tests opened on the same interface, comparative analysis
Partial cooperative clients:
|
Application industry |
Customer Name |
|
Well-known enterprises |
Southern Road Machinery |
|
Changyuan Electronics Group |
|
|
Universe Group |
|
|
Jiangsu Sanjili Chemical |
|
|
Zhenjiang Dongfang Bioengineering Equipment Technology Co., Ltd |
|
|
Tianyongcheng Polymer Materials (Jiangsu) Co., Ltd |
|
|
Research Institute |
China Leather and Footwear Industry Research Institute (Jinjiang) Co., Ltd |
|
Institute of Engineering Thermophysics, Chinese Academy of Sciences |
|
|
Jiangsu Construction Quality Inspection Center |
|
|
Nanjing Juli Intelligent Manufacturing Technology Research Institute |
|
|
Ningxia Zhongce Metrology Testing and Inspection Institute |
|
|
Changzhou Import and Export Industrial and Consumer Product Safety Testing Center |
|
|
Zhejiang Wood Product Quality Testing Center |
|
|
Nanjing Juli Intelligent Manufacturing Technology Research Institute Co., Ltd |
|
|
Xi'an Quality Inspection Institute |
|
|
Shandong University Weihai Industrial Technology Research Institute |
|
|
colleges and universities |
Tongji University |
|
University of Science and Technology of China |
|
|
china university of petroleum |
|
|
China University of Mining and Technology |
|
|
Hunan University |
|
|
South China University of Technology |
|
|
Northeastern University |
|
|
Nanjing University |
|
|
Nanjing University of Science and Technology |
|
|
Ningbo University |
|
|
jiangsu university |
|
|
Shaanxi University of Technology |
|
|
xihua university |
|
|
Qilu University of Technology |
|
|
Guizhou Minzu University |
|
|
Guilin University of Technology |
|
|
Hunan University of Technology |
Configuration List:
|
serial number |
Accessory Name |
Quantity |
notes |
| 1 |
Hot heavy host |
1 unit |
|
| 2 |
U disk |
1 piece |
|
| 3 |
Data line |
2 pieces |
|
| 4 |
Power line |
1 piece |
|
| 5 |
Ceramic Crucible |
200 pieces |
|
| 6 |
Sample Tray |
1 set |
|
| 7 |
Water Cooling Device |
1 set |
|
| 8 |
Raw Tape |
1 roll |
|
| 9 |
Standard Tin |
1 bag |
|
| 10 |
10A Fuse |
5 pieces |
|
| 11 |
Sample Spoon/sample Pressure Rod/Tweezers |
1 each |
|
| 12 |
Dust Cleaning Ball |
1个 |
|
| 13 |
Trachea |
2 pieces |
Φ8mm |
| 14 |
Instructions |
1 copy |
|
| 15 |
Guarantee |
1 copy |
|
|
16 |
Certificate Of Conformity |
1 copy |
|
|
17 |
Cryogenic Device |
1 set |
